Cement Testing Equipment

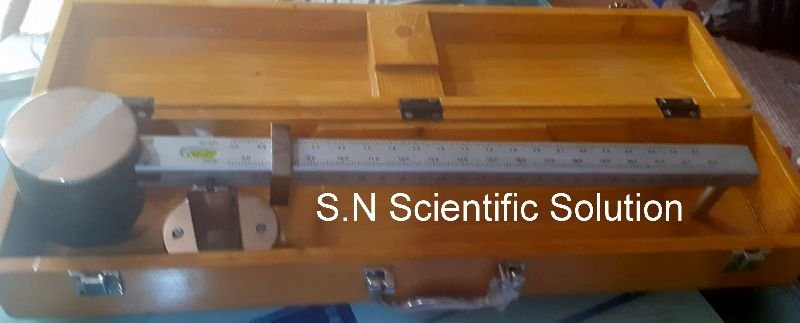

IS 1199-1959, IS 4031 1968 BS 1881, ASTM C 151, C490It Is Used To Measure The Dying Shrinkage Of Concrete Autoclave Expansion Of Portland Cement And Potential Expansive Reactivity Of Cement Aggregate Combinations In Mortar Bars During Storage, On Self Drying.The Instrument Consists Of A Channeled Base Over Which Two Vertical Pillars Are Fixed. An Adjustable Cross Plate Is At The Top. A Dial Gauge, Reading To

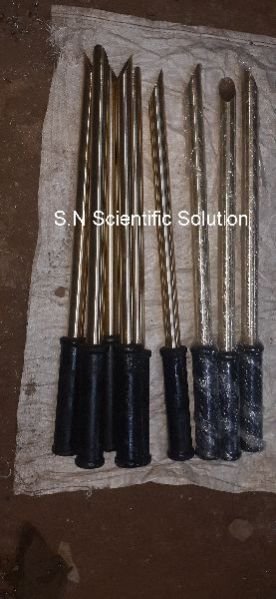

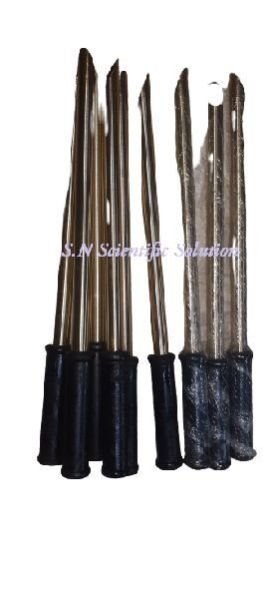

Specifications: This Is A Tube Approximately 53cms Long And 2.8cms I.D. With A Wooden Handle. Total Length Approximately 73cms. The Tube Has The Sharp Angular Edge Which Convinently Pierces Cement Bags. An Air Hole Of Approximately 3mm Dia Is Drilled On The Tube Near Handle.

Mortar Mixer has been specifically designed to mix cement paste and mortars to standard requirements. The machine can be operated in either automatic or manual mode. The mixer uses an elliptical mixing motion for thorough and efficient mixing and includes microprocessor control of the speed and mixing program. Specifications Speed (rpm)PaddleMixing Head Low 140 ± 5 62 ± 5 High 285 ± 10 125 ± 10 Rated power 180 W Bowl capacity 5 liters Weight 54 kg Dimension (LxWxH) 530 x 350 x 580 mm

Description S.N Scientific Solution Marsh Funnel is a rugged, easy to operate instrument for rapid, on the spot measurements of drilling mud viscosity. The rate of gelation and the density of the slurry considerably influence the viscosity measurement. Frequent reporting of the funnel viscosity makes it possible for mud engineers to observe sudden changes in the slurry viscosity and to take corrective action when necessary. Funnel viscosity is the ratio of the speed of the slurry as it passes through the outlet tube (shear rate) to the force (weight of the slurry) causing the slurry to flow (shear stress). Funnel viscosity is reported as the seconds required for one quart of slurry to flow out a full funnel. Equipment • Marsh Funnel • Measuring Cup (graduated) • Stopwatch • Thermometer

Product Description in this machine the mould is mounted on the vibrating platform with having frequency of 12,000 ± 400 vibrations per minute. The entire assembly is operated by the revolving shaft with eccentric mechanism and the platform is attached with four matched springs.
