Concrete Flow Table

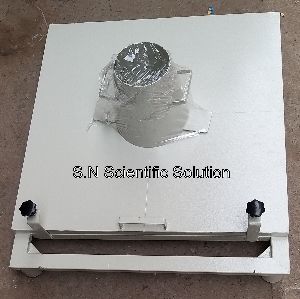

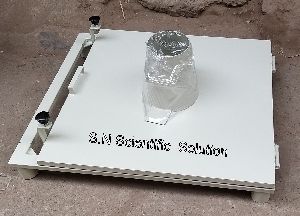

Flow table test of concrete: As the name suggests, in this test the workability of concrete is determined by examining the flowing property of concrete. Flow table test of concrete also determines the Quality of Concrete concerning its consistency, cohesiveness and the proneness to segregation.As there are two methods to find the flow value of concrete which one is outdated. Here we are explaining the new method of flow table test. This new flow table test is covered with BS 1881 part 105 of 1984 and DIN 1048 part I. Apparatus of Flow Table Test: Flow table made of metal having thickness 1.5mm and dimensions 750mmx 750mm, tamping rod made of hardwood, Scoop, Centimeter Scale, Metal Cone or mould (Lower Dia = 20cm, upper Dia = 13 cm, Height of Cone = 20cm). The middle portion of flow table is marked with a concentric circle of dia 200mm to place a metal cone on it. A lift handleThe more details about Flow table is depicted in the below image go through it if required.
